| CPU/Takt |
65C02 / 1.023 MHz |
| ROM |
16 KByte |
| RAM (erweiterbar) |
128 KByte |
| Custom Chips |
- |
| Textmodi |
40 * 24 |
| Grafikmodi |
40 * 48 (16 colours)
280 * 192 (6 colours)
|
| Sound |
1 channel / 1 bit |
| Tastatur |
typewriter style (62 keys)
full ASCII
|
| Schnittstellen |
composite video output (RCA f)
RGB output (DB15f)
game port (DB9f)
external floppy connector (DB19f)
serial modem (DIN5f)
serial printer (DIN5f)
headphone jack (klinke)
|
| Massenspeicher |
5¼" floppy drive |
| Größe: |
Breite |
| |
Höhe |
| |
Länge |
| |
Gewicht |
|
| 290 mm |
| 60 mm |
| 310 mm |
| 3.6 kg |
|
| Betriebssystem |
Applesoft II ROM BASIC
Integer BASIC
DOS, ProDOS, UCSD, CP/M
|
| Peripheriegeräte |
|
| angekündigt |
|
| released |
|
| discontinued |
|

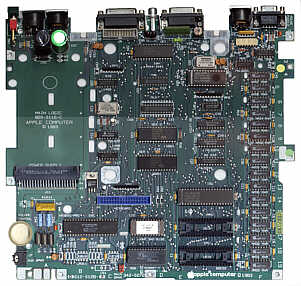

 "Apple //c mainboard (click for larger picture, 113k)")

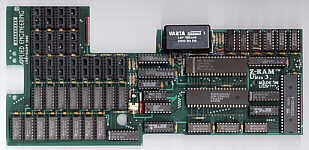

 "Apple //c processor and memory board (click for larger picture, 37k)")
